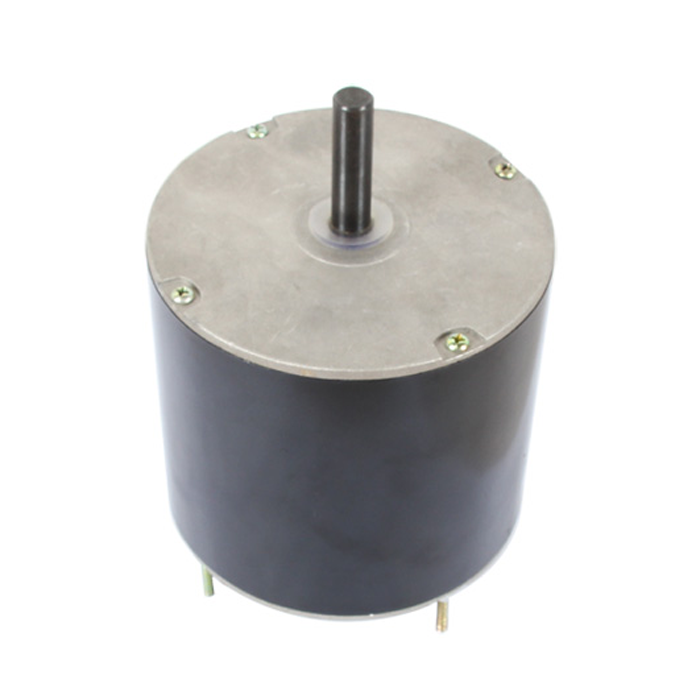

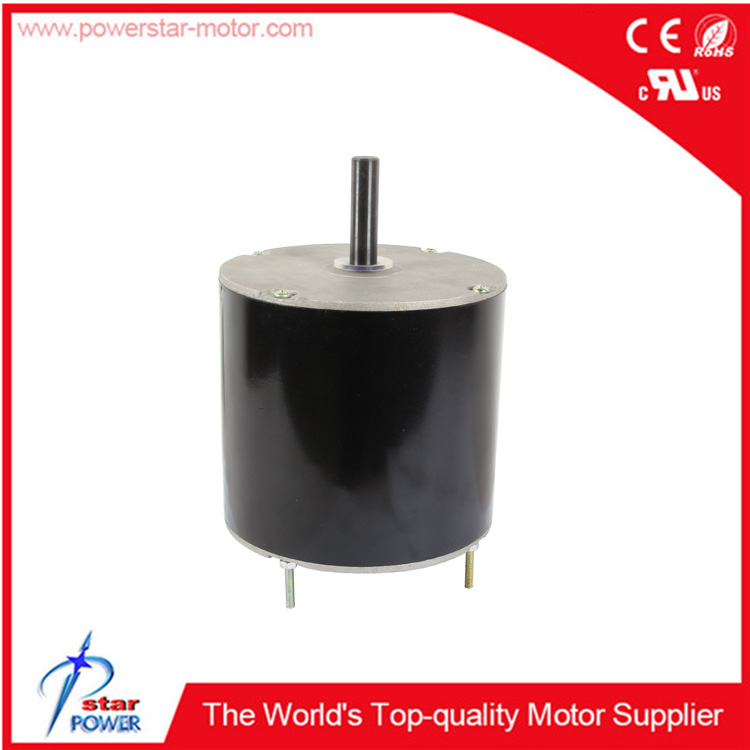

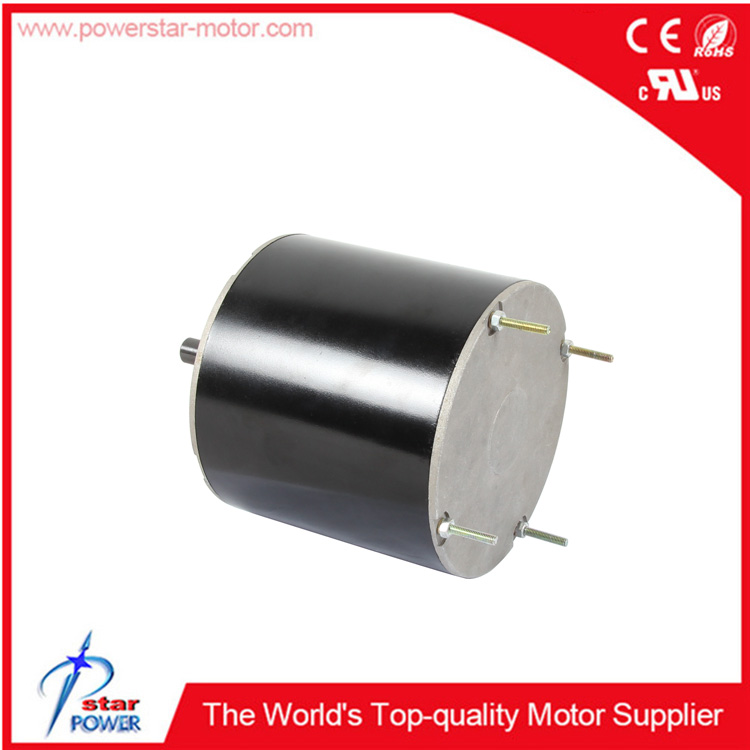

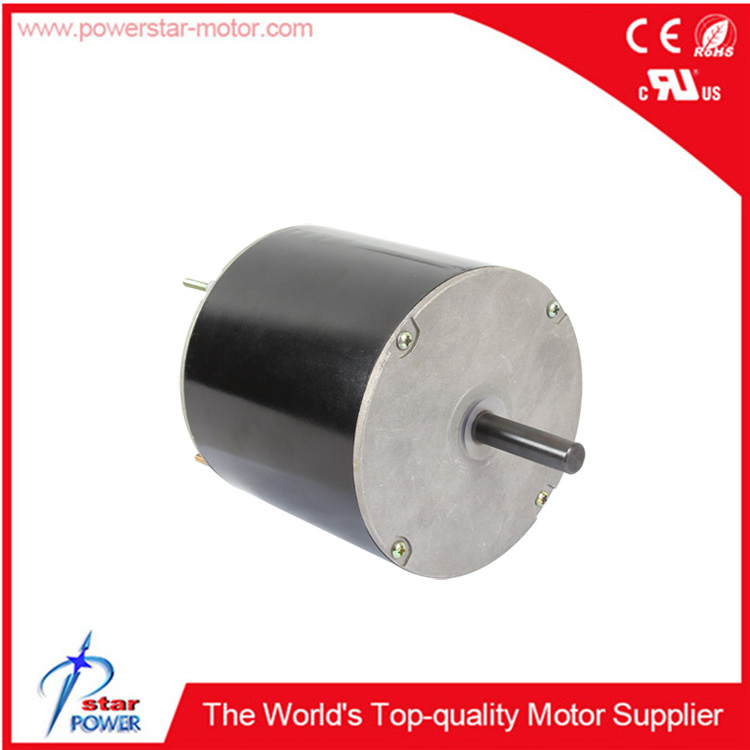

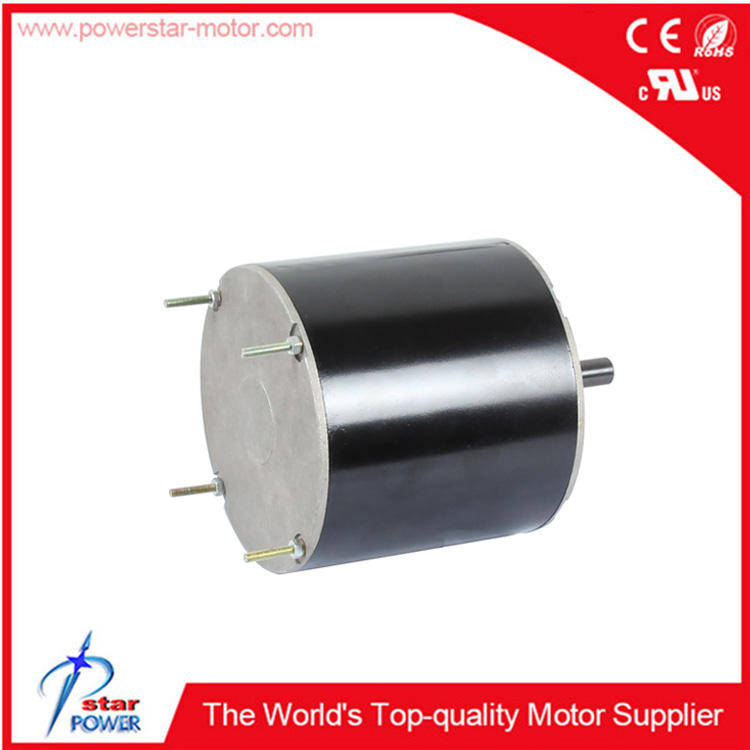

 Multi Horse Condenser Fan Motor |
 |
|
Multi Horse Condenser Fan Motor |
|
| Brand Name: | Powerstar | Model Number: | YDK-250-6M | Type: | Asynchronous Motor | working condiction | continuious |
| Frequency: | 50/60hz | Output Power: | 1/3HP | Protect Feature: | Totally Enclosed | Pole | 6 |
| Phase: | Single-phase | Certification: | ROHS,UL | AC Voltage: | 115V/208-230V | current | 2.8A |
| Place of Origin: | Guangdong China (Mainland) | Efficiency: | IE 3 | Approval: | UL,ROHS | shape | tubular |
| Speed: | 1075rpm | Bearing: | Ball bearing | Protect feature: | enclosed | color | black |
| open or enclosed: | totally-enclosed | rotation | reversible | insulation class | H |
| Multi Horse Condenser Fan Motor | ||||||
| Part No. | Model | Voltage(V) | Speed | APMS | ROT | Bearing |
| 1 | YDK-250-8M | 208-230 | 3 | 1.9 | REV. | ball |
| 2 | YDK-180-8M | 208-230 | 3 | 1.5 | REV. | ball |
| 3 | YDK-150-8M | 208-230 | 3 | 1.2 | REV. | ball |
| 4 | YDK-120-8M | 208-230 | 3 | 1 | REV. | ball |
| 5 | YDK-250-6M | 208-230 | 3 | 2.8 | REV. | ball |
| 6 | YDK-180-6M | 208-230 | 3 | 2 | REV. | ball |
| 7 | YDK-150-6M | 208-230 | 3 | 1.7 | REV. | ball |
| 8 | YDK-120-6M | 208-230 | 3 | 1.5 | REV. | ball |
| 9 | YDK-370-6 | 208-230 | 3 | 3.9 | REV. | ball |
| 10 | YDK-250-6 | 208-230 | 3 | 2.2 | REV. | ball |
| 11 | YDK-180-6 | 208-230 | 3 | 1.6 | REV. | ball |
| 12 | YDK-150-6 | 208-230 | 3 | 1.3 | REV. | ball |
