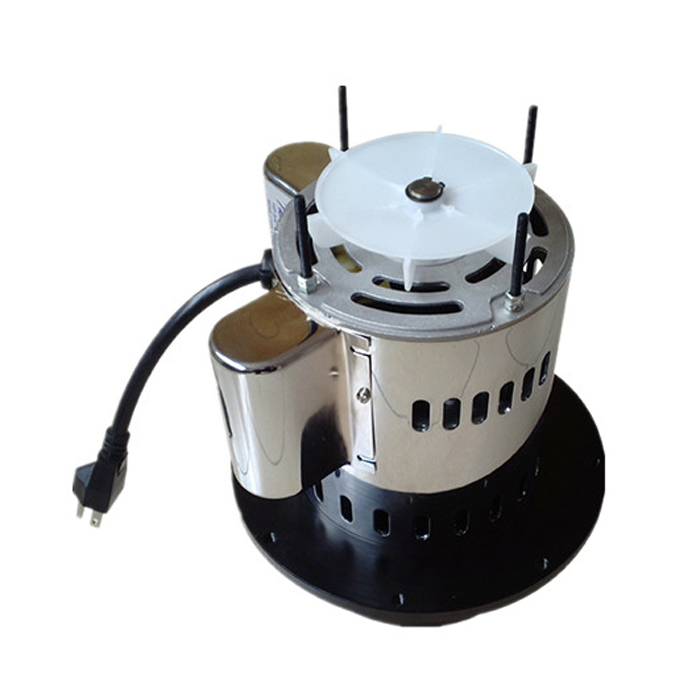

 Floor polishing machine motor 3 |
 |
|
Floor polishing machine motor 3 |
|
| Brand Name: | Powerstar | Model Number: | YDK-750-4BS | Type: | Asynchronous Motor | working condiction | continuious |
| Frequency: | 60hz | Output Power: | 1 HP | Protect Feature: | Totally Enclosed | Pole | 4 |
| Phase: | Single-phase | Certification: | ROHS,UL | AC Voltage: | 110-120V/220V | working condiction | cintunuious |
| Place of Origin: | Guangdong China (Mainland) | Efficiency: | IE 3 | Approval: | UL,ROHS | color | black and silver |
| Speed: | 1750rpm | Bearing: | Ball bearing | Protect feature: | enclosed | motor length(including gear box) | 285.8 mm |
| open or enclosed: | semi-enclosed | rotation | CW/CCW | insulation class | H | motor DIA(including gear box) | 209.6 mm |
| Floor polishing machine motor 3 | ||||||||||||
| Part No. | Model | Power (HP) | Voltage (V) | Frequency (Hz) | Pole | Speed (RPM) | Rotation | Ratios | Bearing | Diameter | Protect Feature | Insulation Class |
| 1 | YDZ-370-4A | 1/2 | 220V | 50/60 | 4 | 1450/1750 | CW | 10:01 | ball | 144 | open/enclosed | H |
| 2 | YDZ-370-4B | 1/2 | 120V | 60 | 4 | 1750 | CW | 10:01 | ball | 144 | open/enclosed | H |
| 3 | YDZ-550-4A | 3/4 | 220V | 50/60 | 4 | 1450/1750 | CW | 10:01 | ball | 144 | open/enclosed | H |
| 4 | YDZ-550-4B | 3/4 | 120V | 60 | 4 | 1750 | CW | 10:01 | ball | 144 | open/enclosed | H |
| 5 | YDZ-750-4AS | 1 | 220V | 50/60 | 4 | 1450/1750 | CW | 10:01 | ball | 200 | open/enclosed | H |
| 6 | YDZ-750-4BS | 1 | 120V | 60 | 4 | 1750 | CW | 10:01 | ball | 200 | open/enclosed | H |
