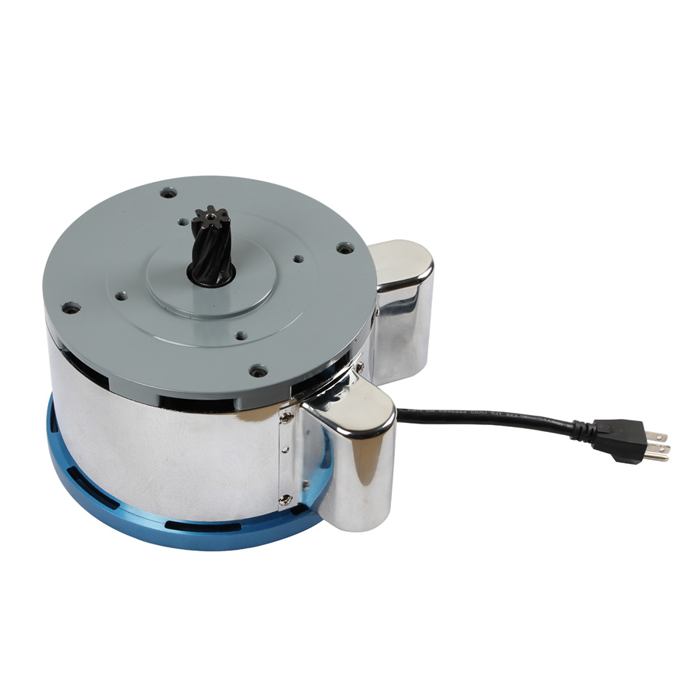

 Floor polishing machine motor 1 |
 |
|
Floor polishing machine motor 1 |
|
| Brand Name: | Powerstar | Model Number: | YDK-1200-4BC | Type: | Asynchronous Motor | working condiction | continuious |
| Frequency: | 60hz | Output Power: | 1 1/2 HP | Protect Feature: | Totally Enclosed | Pole | 4 |
| Phase: | Single-phase | Certification: | ROHS,UL | AC Voltage: | 110-120V/220V | working condiction | cintunuious |
| Place of Origin: | Guangdong China (Mainland) | Efficiency: | IE 3 | Approval: | UL,ROHS | color | blue and silver |
| Speed: | 1750rpm | Bearing: | Ball bearing | Protect feature: | enclosed | motor length | 174.5 mm |
| open or enclosed: | enclosed | rotation | CW/CCW | insulation class | H | motor DIA | 207mm |
| Floor polishing machine motor 1 | |||||||||
| Part No. | Model | Power (HP) | Frequency (Hz) | Pole | Rotation | Ratios | Diameter | Protect Feature | Insulation Class |
| 1 | YDZ-750-4AC | 1 | 50/60 | 4 | CW | 09:01 | 200 | open/enclosed | H |
| 2 | YDZ-750-4BC | 1 | 60 | 4 | CW | 09:01 | 200 | open/enclosed | H |
| 3 | YDZ-1200-4AC | 1 1/2 | 50/60 | 4 | CW | 09:01 | 200 | open/enclosed | H |
| 4 | YDZ-1200-4BC | 1 1/2 | 60 | 4 | CW | 09:01 | 200 | open/enclosed | H |
| 5 | YDZ-1500-4AC | 2 | 50/60 | 4 | CW | 09:01 | 200 | open/enclosed | H |
| 6 | YDZ-1500-4BC | 2 | 60 | 4 | CW | 09:01 | 200 | open/enclosed | H |
| 7 | YDZ-1800-4AC | 2 1/2 | 50/60 | 4 | CW | 09:01 | 200 | open/enclosed | H |
| 8 | YDZ-2200-4AC | 3 | 50/60 | 4 | CW | 09:01 | 200 | open/enclosed | H |
