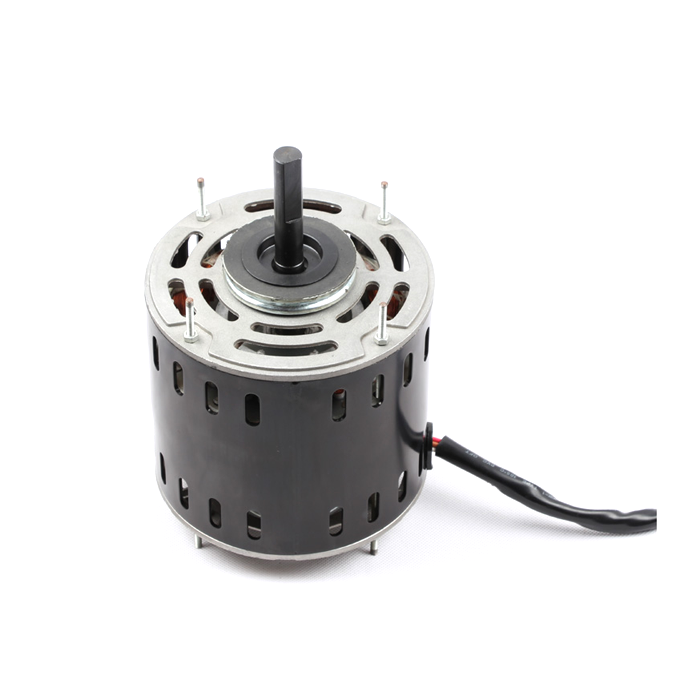

 Multi horse furnace fan motor |
 |
|
Multi horse furnace fan motor |
|
| Brand Name: | Powerstar | Model Number: | YDK-370-6M | Type: | Asynchronous Motor | working condiction | continuious |
| Frequency: | 50/60hz | Output Power: | 1/2HP | Protect Feature: | Totally Enclosed | Pole | 6 |
| Phase: | Single-phase | Certification: | ROHS,UL | AC Voltage: | 115V/208-230V | current | 7A |
| Place of Origin: | Guangdong China (Mainland) | Efficiency: | IE 3 | Approval: | UL,ROHS | shape | tubular |
| Speed: | 825rpm | Bearing: | Ball bearing | Protect feature: | ventilated | color | black |
| open or enclosed: | semi-enclosed | rotation | reversible | insulation class | H | working condiction | continuious |
| Furnace Blower Fan Motor | |||||||||
| Part No. | Model | Power(HP) | Voltage(V) | Speed | RPM | APMS | ROT | Protect Feature | Bearing |
| 1 | YDK-370-6M | 1/2 | 115 | 3 | 825 | 7 | REV. | open vent | ball |
| 2 | YDK-250-6M | 1/3 | 115 | 3 | 825 | 6.7 | REV. | open vent | ball |
| 3 | YDK-180-6M | 1/4 | 115 | 3 | 825 | 4.4 | REV. | open vent | ball |
| 4 | YDK-150-6M | 1/5 | 115 | 3 | 825 | 3.2 | REV. | open vent | ball |
| 5 | YDK-120-6M | 1/6 | 115 | 3 | 1075 | 2.4 | REV. | open vent | ball |
| 6 | YDK-370-6MA | 1/2 | 208-230 | 3 | 1075 | 3.9 | REV. | open vent | ball |
| 7 | YDK-250-6MA | 1/3 | 208-230 | 3 | 1075 | 3.6 | REV. | open vent | ball |
| 8 | YDK-180-6MA | 1/4 | 208-230 | 3 | 1075 | 2.5 | REV. | open vent | ball |
| 9 | YDK-150-6MA | 1/5 | 208-230 | 3 | 1075 | 1.8 | REV. | open vent | ball |
| 10 | YDK-120-6MA | 1/6 | 208-230 | 3 | 1075 | 1.3 | REV. | open vent | ball |
| 11 | YDK-550-6M | 3/4 | 115 | 3 | 1075 | 9.1 | REV. | open vent | ball |
| 12 | YDK-370-6MB | 1/2 | 115 | 3 | 1075 | 6.8 | REV. | open vent | ball |
| 13 | YDK-250-6MB | 1/3 | 115 | 3 | 1075 | 5.5 | REV. | open vent | ball |
| 14 | YDK-180-6MB | 1/4 | 115 | 3 | 1075 | 3 | REV. | open vent | ball |
| 15 | YDK-150-6MB | 1/5 | 115 | 3 | 1075 | 2.3 | REV. | open vent | ball |
| 16 | YDK-550-6MA | 3/4 | 208-230 | 3 | 1075 | 3.9 | REV. | open vent | ball |
| 17 | YDK-370-6MC | 1/2 | 208-230 | 3 | 1075 | 3.6 | REV. | open vent | ball |
| 18 | YDK-250-6MC | 1/3 | 208-230 | 3 | 1075 | 3 | REV. | open vent | ball |
| 19 | YDK-180-6MC | 1/4 | 208-230 | 3 | 1075 | 2.3 | REV. | open vent | ball |
| 20 | YDK-150-6MC | 1/5 | 208-230 | 3 | 1075 | 2 | REV. | open vent | ball |
