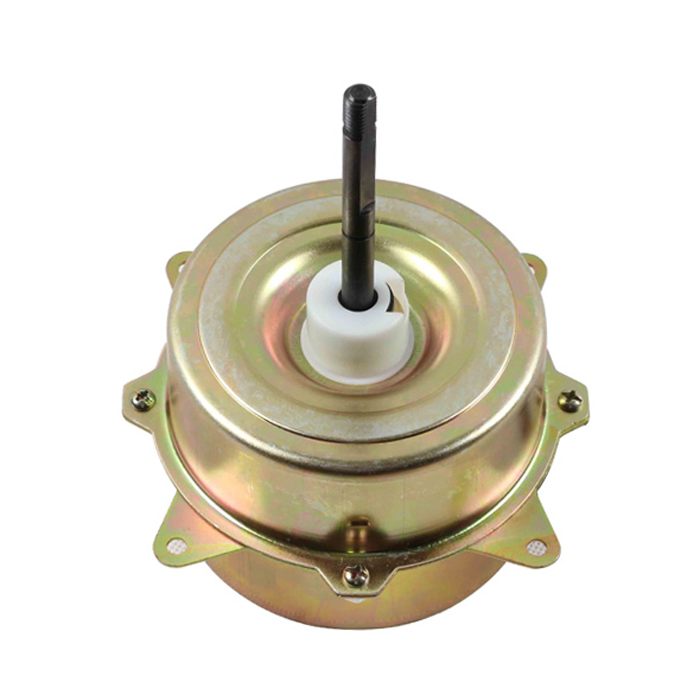

 Air Conditioner Motors |
 |
|
Air Conditioner Motors |
|
| Brand Name: | Powerstar | Model Number: | YDK-45-6 | Type: | Asynchronous Motor | working condiction | continuious |
| Frequency: | 50/60hz | Output Power: | 45W | Protect Feature: | Totally Enclosed | Pole | 6 |
| Phase: | Single-phase | Certification: | ROHS,UL | AC Voltage: | 115V/208-230V | working condiction | cintunuious |
| Place of Origin: | Guangdong China (Mainland) | Efficiency: | IE 3 | Approval: | UL,ROHS | ||
| Speed: | 700-900rpm | Bearing: | Ball bearing | Protect feature: | enclosed | ||
| open or enclosed: | open or enclosed | rotation | CW/CCW | insulation class | F |
| Air Conditioner Motors | |||||||||
| Part No. | Model | Power(W) | Frequency(Hz) | Pole | Rotation | Shaft(mm) | DIA(mm) | Protect Feature | Insulation Class |
| 1 | YDK-20-6 | 20 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 2 | YDK-25-6 | 25 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 3 | YDK-30-6 | 30 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 4 | YDK-35-6 | 35 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 5 | YDK-40-6 | 40 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 6 | YDK-45-6 | 45 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 7 | YDK-50-6 | 50 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 8 | YDK-55-6 | 55 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 9 | YDK-60-6 | 60 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 10 | YDK-65-6 | 65 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 11 | YDK-70-6 | 70 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
| 12 | YDK-250-6 | 250 | 50/60 | 6 | CW/CCW | 8 | Steel cover 96 | enclosed | F |
