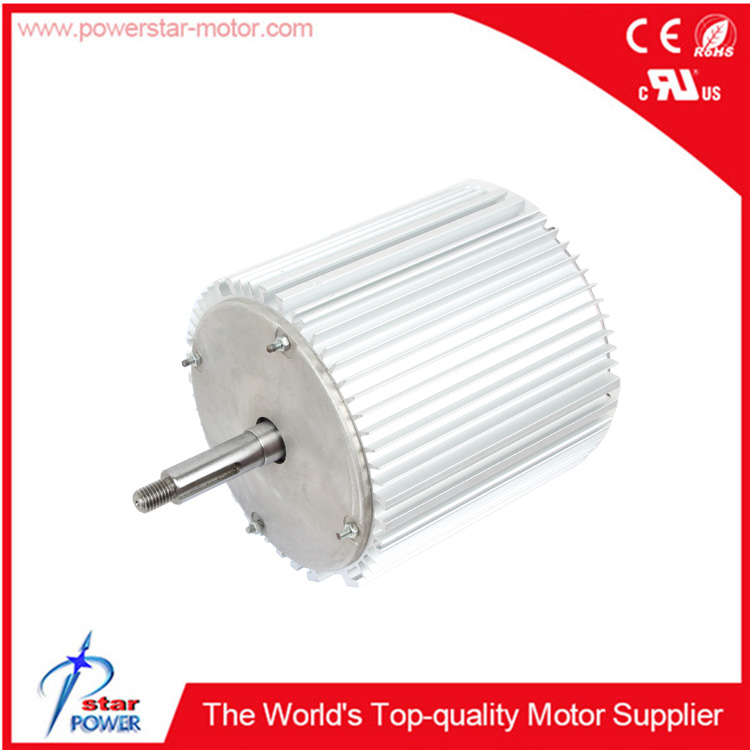

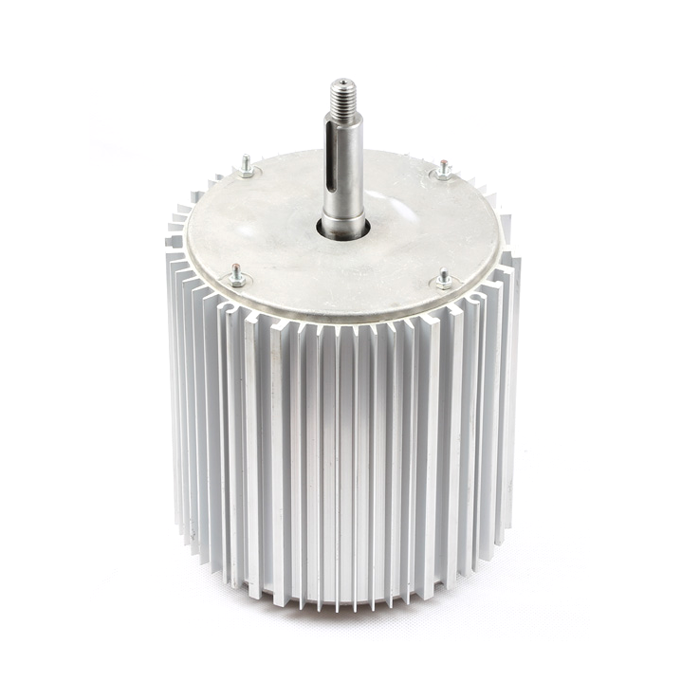

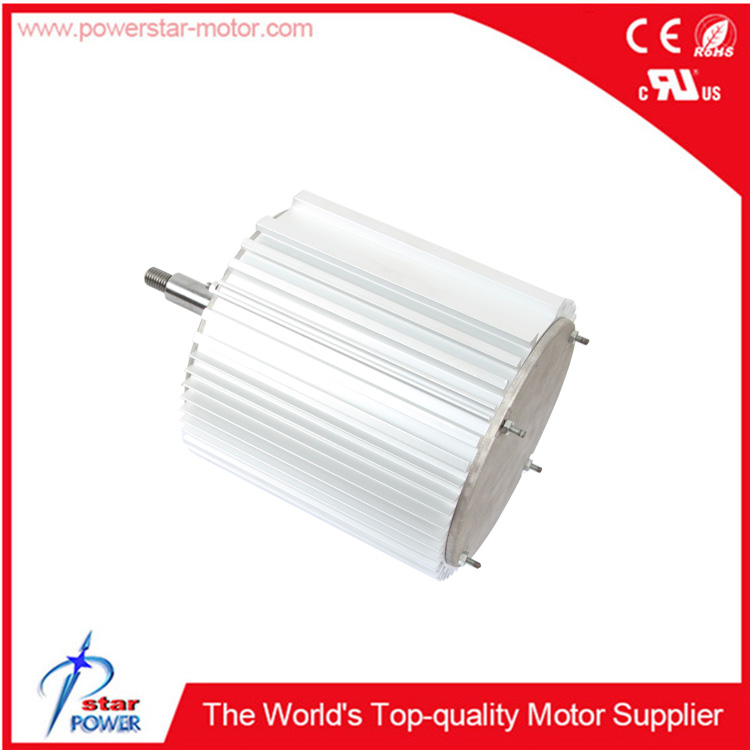

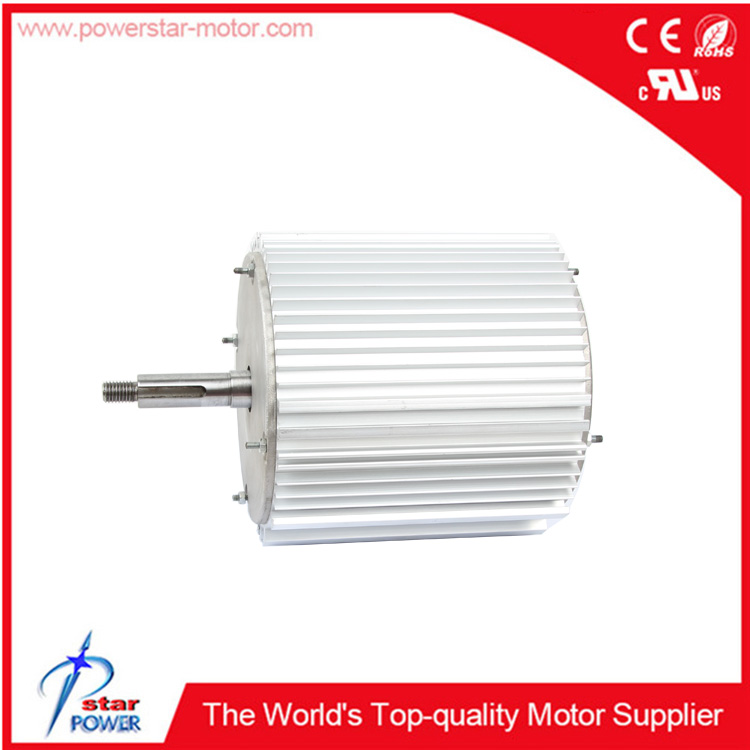

 Air cooler motor |
 |
|
Air cooler motor |
|
| Brand Name: | Powerstar | Model Number: | YDK-550-6 | Type: | Asynchronous Motor | working condiction | continuious |
| Frequency: | 50/60hz | Output Power: | 550W | Protect Feature: | Totally Enclosed | Pole | 6 |
| Phase: | Single-phase | Certification: | ROHS,UL | AC Voltage: | 115V/208-230V | working condiction | cintunuious |
| Place of Origin: | Guangdong China (Mainland) | Efficiency: | IE 3 | Approval: | UL,ROHS | shaft DIA | 20mm |
| Speed: | 920-1425rpm | Bearing: | Ball bearing | Protect feature: | enclosed | motor length | 164mm/103mm |
| open or enclosed: | enclosed | rotation | CW/CCW | insulation class | H | motor DIA | 162mm/144mm |
| Air Cooler Motor | |||||||||||
| NO. | Model | Power(HP) | Voltage(V) | Frequency(Hz) | Stall | RPM | Current(A) | Pole | rotation | Protect Feature | Bearing |
| 1 | YDK-180-6 | 1/4 | 220 | 50 | H | 920 | 3.3 | 6 | C.W. | totally enclosed | ball |
| L | ** | ** | |||||||||
| 2 | YDK-250-6 | 1/3 | 220 | 50 | H | 1425 | 2.5 | 6 | C.W. | totally enclosed | ball |
| L | 950 | 1.2 | |||||||||
| 3 | YDK-350-6 | 1/2 | 220 | 50 | H | 1425 | 3.5 | 6 | C.W. | totally enclosed | ball |
| L | 950 | 1.7 | |||||||||
| 4 | YDK-550-6 | 3/4 | 220 | 50 | H | 1425 | 4 | 6 | C.W. | totally enclosed | ball |
| L | 950 | 2 | |||||||||
