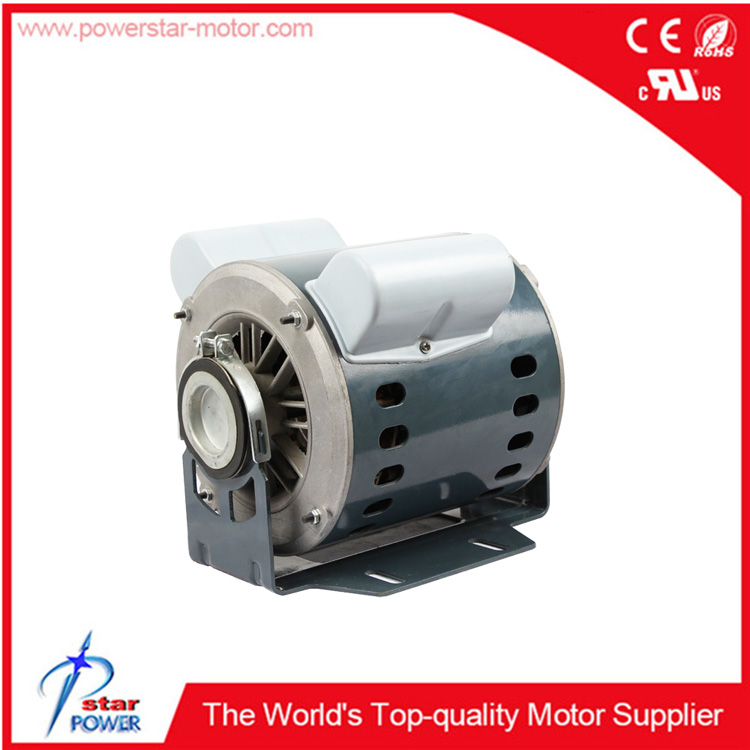

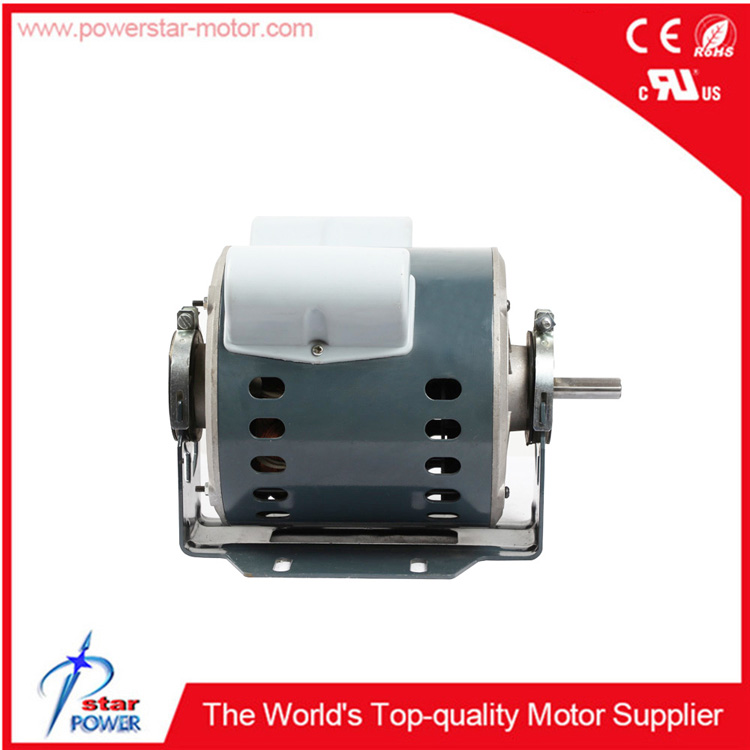

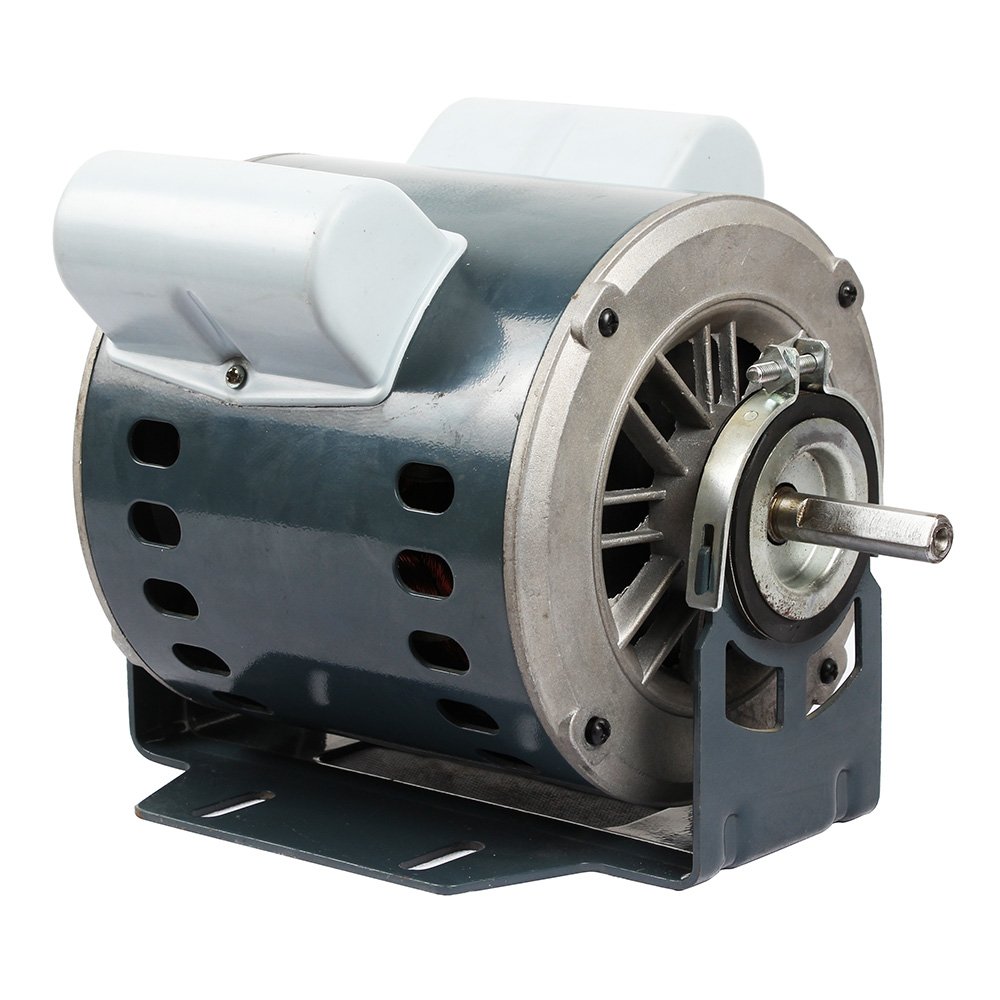

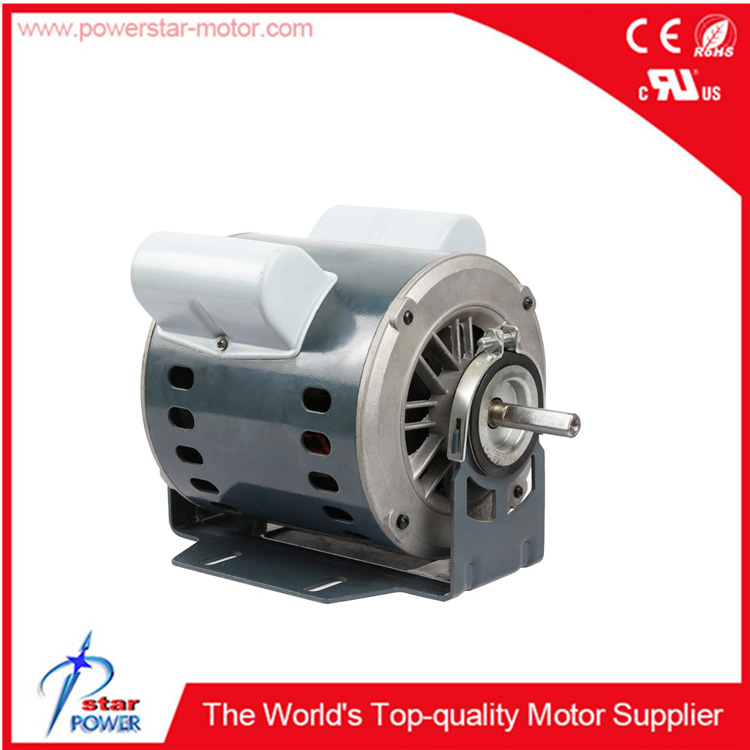

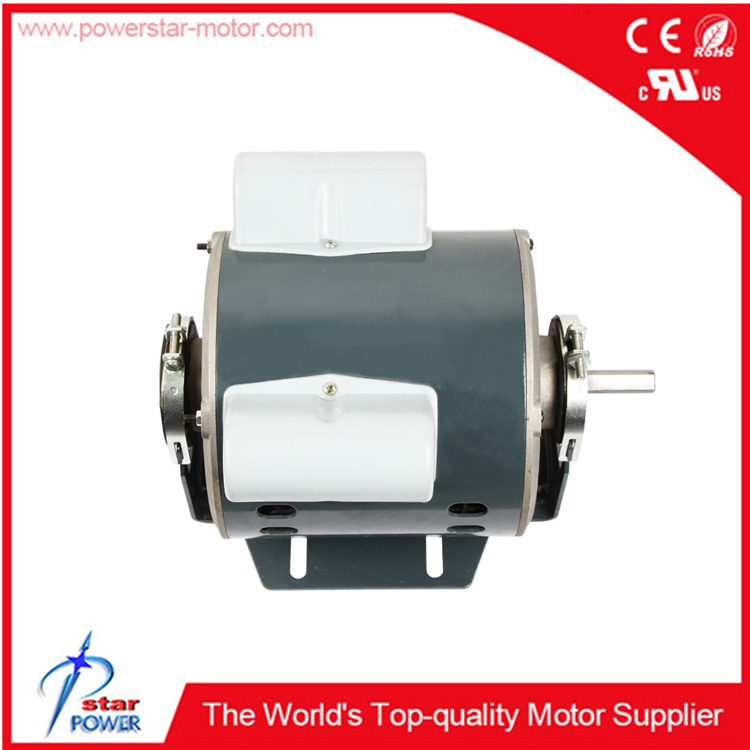

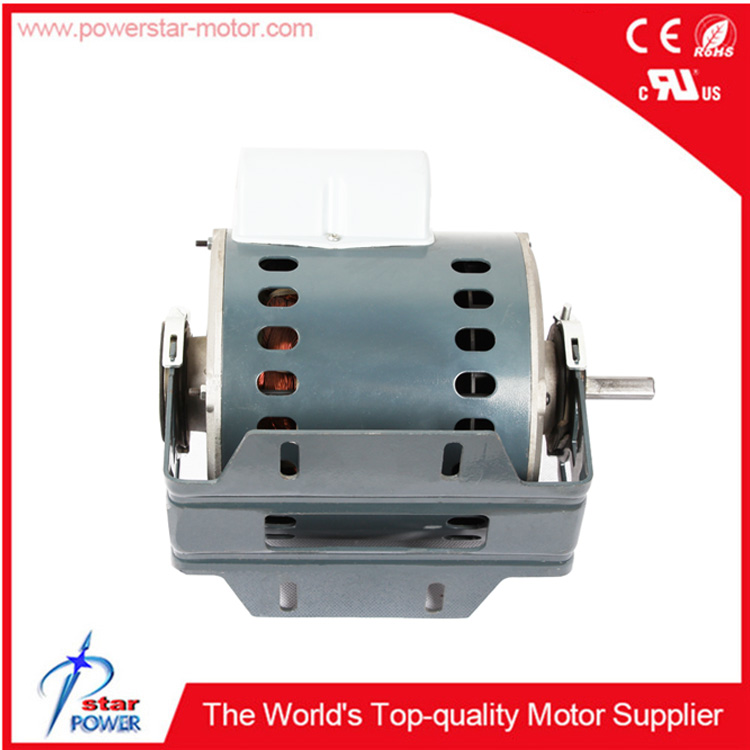

 Water cooler motor |
 |
|
Water cooler motor |
|
| Frequency | 50hz | Type: | YDK-250-6W | Type: | Single-phase AC induction motor | working conditions | continuous operation |
| Origin | Zhongshan City, Guangdong Province | output | 250W | enclosure type | closed or open | Poles | 6-pole |
| speed | 950 / 1425rpm | Authentication | ROHS, UL | voltage | 220V | shift | CW |
| bearing | ball | Copper Level | F |
| Water Cooler Motor | |||||||||||
| NO. | Model | Power(HP) | Voltage(V) | Frequency(Hz) | Stall | RPM | Current(A) | Pole | rotation | Protect Feature | Bearing |
| 1 | YDK-180-6W | 1/4 | 220 | 50 | H | 920 | 1.5 | 6 | C.W. | semi-enclosed | ball |
| L | 1425 | 0.8 | |||||||||
| 2 | YDK-250-6W | 1/3 | 220 | 50 | H | 1425 | 2.5 | 6 | C.W. | semi-enclosed | ball |
| L | 950 | 1.2 | |||||||||
| 3 | YDK-350-6W | 1/2 | 220 | 50 | H | 1425 | 3.5 | 6 | C.W. | semi-enclosed | ball |
| L | 950 | 1.7 | |||||||||
| 4 | YDK-550-6W | 3/4 | 220 | 50 | H | 1425 | 4 | 6 | C.W. | semi-enclosed | ball |
| L | 950 | 2 | |||||||||
